    AISI H11 tool steel is a 5% chromium hot work tool steel that is represented by its excellent impact toughness. Chromium hot-work tool steels are designated as group H steels according to the AISI classification system, and specified in ASTM A681 standard. The most commonly used chromium hot-work steels are H11 tool steel, h12 tool steel, and H13 steel, within the series from H1 to H19.

    If we compare between H11 and H13, H11 tool steel consists of less vanadium than the commonly used H13 hot work tool steel. This gives H11 steels the higher toughness, with some reduction in wear resistance and temper resistance. H11 tool steel is a deep-hardening, air-hardening steel and H11 alloy steel could be deep hardened by heat treatment and air-quenching. That gives minimal size change during heat treatment. H11 how work steel also has super resistance to thermal fatigue cracking and superb resistance to gross cracking and thermal shock when water cooled in service.

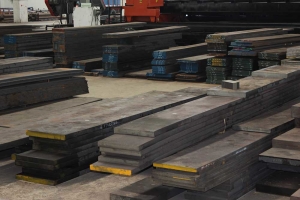

    aisi H11 tool steel alloy hot work steel

    We are serious AISI H11 tool steel supplier for you and we know your requirements and needs. Below is the complete data of AISI H11 hot work steel.

    1.ASTM A681 H11 Tool Steel Supply Range

    H-11 Steels Round Bar: diameter 8mm–1000mm
    H11 Steel Flat: thickness 16-500mm x width 200-800mm
    H11 Steels Plate: thickness 16-500mm x width 200-810mm
    Other dimension according to your requirements

    Surface Finish: Black, Rough Machined, Peeled, Turned or as per given requirements.

    2.AISI H11 Tool Steel Standard and Relevant Steel Specifications

    CountryUSAGermanJapanBritish
    StandardASTM A681DIN EN ISO 4957JIS G4404BS 4659
    GradesH11/T208111.2343/X37CrMoV5-1SKD6BH11

    3.H11 Tool Steel and Equivalents’ Chemical Composition

    ASTM A681CMnPSSiCrVWMo
    H11/T208110.350.450.200.600.030.030.801.254.755.500.300.601.101.60
    DIN ISO 4957CMnPSSiCrVWMo
    1.2343/X37CrMoV5-10.280.350.100.400.801.202.703.200.400.701.101.50
    JIS G4404CMnPSSiCrVWMo
    SKD60.320.420.500.030.030.801.204.505.500.300.501.001.50
    BS 4659CMnPSSiCrVWMo
    BH110.320.400.400.350.350.851.154.755.250.300.501.251.75

    4. H11 Hot Work Tool Steel Properties

    Physical Properties

    PropertiesMetricImperial
    Density7.81 g/cm30.282 lb/in3
    Melting point1427°C2600°F

    Mechanical Properties

    PropertiesMetricImperial
    Hardness, Rockwell C (air cooled from 982°C, 45 mins)52.552.5
    Hardness, Rockwell C (air cooled from 1010°C, 45 mins)5656
    Hardness, Rockwell C (air cooled from 1038°C, 45 mins)5757
    Modulus of elasticity207 GPa30000 ksi
    Modulus of elasticity (@538°C/1000°F)159 GPa23000 ksi
    Modulus of elasticity (@204°C/400°F)190 GPa27500 ksi
    Charpy impact (V-notch; air cooled from 1010°C;535°C temper temperature)13.6 J10.0 ft-lb
    Charpy impact (V-notch; air cooled from 1010°C;650°C temper temperature)27.1 J20.0 ft-lb
    Charpy impact (V-notch; air cooled from 1010°C;370°C temper temperature)33.9 J25.0 ft-lb
    Machinability (1% carbon steel)75.0 – 80.0%75.0 – 80.0%
    Poisson’s ratio0.27-0.300.27-0.30

    Thermal Properties

    PropertiesMetricImperial
    Thermal expansion (@20-100ºC/68-212ºF)11.9 x 10-6/ºC6.63 µin/in°F
    Thermal conductivity (@100ºC/212ºF)42.2 W/mK292.9 in/hr.ft².°F

    5. Forging of H11 Tool Steels

    AISI H11 alloy steels are forged at 1121°C (2050°F). For this type of steels, forging below 899°C (1650°F) is not preferable.

    6.AISI H11 Tool Steel Heat Treatment

    Annealing of H-11 steel

    Anneal at 871°C and slow cool at 4.4°C per hour or less in the furnace.

    Tempering of Steel H11

    Temper at 537°C to 648°C for Rockwell C hardness of 54 to 38. Double tempering for one hour each time at the selected tempering temperature is recommended.

    7.Applications of AISI H11 Tool Steel

    H11 alloy steel is often used for highly stressed structural parts such as aircraft landing gear.

    Some typical applications: Hot punches, die casting dies, forging dies, hot shear blades, hot gripper dies, and extrusion tooling.
    The tools produced from H11 chromium hot-work steels can be cooled using water without damage as these steels have low carbon and alloy contents.

    We are reliable supplier of AISI H11 tool steel and we offer and delivery satisfactory quality of H-11 tool steel. Contact us for best offer of AISI H11 steel materials.
